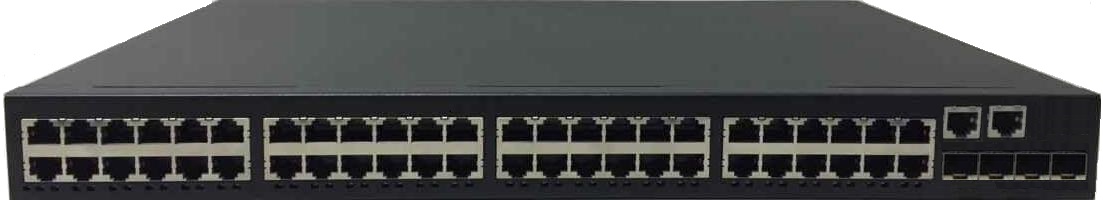

ES6252TS-L3万兆高性能路由交换机
L3万兆高性能路由交换机
ES6252TS交换机是万兆高性能路由交换机,具有24个千兆下行链路端口和两个万兆上行链路以及两个万兆堆栈链路端口。交换机是理想的互联网服务提供商(ISPS)和多系统运营商(MSOS),为家庭用户提供三重播放服务,达到千兆带宽。它也是SMB、企业和校园网的理想千兆位接入交换机。ES6252TS交换机具有高可用性、全面安全性、健壮多播控制的特点,并将QoS提前到网络边缘,同时保持简单的管理。
规格
产品形态
  • 类型
    L3万兆高性能路由交换机
端口
  • 规格
    48*10/100/1000M BASE-T RJ45 ports;2*10G SFP+ uplink ports;2*10G stack link ports;1*GE out-of-band management ports;1*console RJ45 ports
性能
  • flash memory
    64MB
  • DDRIII capacity
    512MB
  • switching capacity
    176Gbps
  • MAC address table size
    16K
  • ARP table size
    1K
  • Jumbo frames
    9KB
  • auto-negotiation
    MDI/MDIX
    Yes
电源
  • input range
    100-240VAC/50-60Hz
  • Max system power(w)
    45W
  • Smart fan controller
    Smart
  • SFP power control
    Yes
  • Dying gasp
    Yes
机箱
  • Rack Space
    19"
  • Dimension
    (W x D x H) cm
    44 x 33 x 4.4
环境
  • Operating Temperature
    0º to 50ºC
  • Storage Temperature
    -40º to 70ºC
  • Operating Humidity
    (non-condensing)
    10% to 90%
  • Storage Humidity
    (non-condensing)
    10% to 90%
  • Environmental Regulation
    Compliance: WEEE
    YES
  • Environmental Regulation
    Compliance: RoHS
    RoHS
认证
  • FCC Class A
    YES
  • CE
    YES
  • Safety Compliance:CB
    YES
  • Safety Compliance:UL
    YES
L2 功能
  • Transceivers
    current/rx-power/temperature/tx-power;voltage/high-low alarm and warning;Digital Diagnostic Monitoring (DDM)
  • Flow Control
    IEEE 802.3x for full duplex mode;Back-Pressure for half duplex mode
  • Jumbo frames
    9 KB
  • Storm Control
    Broadcast/Multicast/Unknown Unicast
  • Link aggregation
    Static link aggregation;802.3ad with LACP;Unicast/Multicast load balance over trunk port
  • Spanning Tree Protocol
    STP;RSTP;MSTP;ERPS;BPDU  Guard;BPDU filtering;BPDU transparent;Loopback detection
  • VLANs
    Supports 4K VLAN;Port-based VLAN;IEEE 802.1Q VLAN;GVRP (256 VLAN);IEEE 802.1v Protocol-based VLAN;IP Subnet-based VLAN;MAC-based VLAN;Voice VLAN;Traffic Segmentation;QinQ
  • IGMP Snooping
    IGMP Proxy reporting;IGMP v1/v2/v3 snooping;IGMP Filtering;IGMP Throttling;IGMP Immediate Leave;IGMP Querier;IGMP mrouter-forward mode;IGMP router-port-expire-time;IGMP tcn-flood;IGMP tcn-query-solicit;IGMP unregistered-data-flood
  • MVR
    5 multicast VLANs
  • Port mirroring
    YES
  • Remote port mirror (RSPAN)
    YES
  • Stacking Links
    L2/L3 supported;VLAN membership supported;trunking supported;IPMC supported
扩展功能
  • Non-Spanning Tree Loopback detection
    YES
  • Port security
    YES
  • Dynamic Arp Inspection
    YES
  • CFM
    YES
  • OAM
    YES
  • UDLD
    YES
L3功能
  • Unicast Routing
    Static Unicast Routes;RIP v1/v2 RIPng;OSPF OSPFv3
  • Multicast Route
    Static Multicast Route;IGMPv1/v2/v3;PIM-SM/DM
  • ARP
    ARP inspection;ARP limit;ARP proxy;ARP filter
  • VRRP
    YES
  • DHCP server
    YES
Qos 功能
  • Scheduling for priority queues
    WRR Priority Scheduling;Strict Pritory Scheduling;Hybrid(DRR/WRR + Strict)
  • COS
    YES
  • DiffServ
    YES
  • Number of Priority Queues
    8 queues/port
  • DSCP
    YES
  • TCP/UDP Port Base
    YES
安全
  • AAA
    Radius client;Tacasc+ client
  • 802.1X
    Local/radius Authentication;Port-based Authentication;Mac-based Authentication
  • HTTPS and SSL(v3)
    YES
  • SSH V2.0
    YES
  • DHCP Snooping
    Option 82
  • IP Source guard
    YES
  • DoS Protection
    YES
ACL
  • L2/L3/L4
    YES
  • Ingress
    YES
  • Egress
    YES
  • Statistics
    YES
  • Global ACL
    YES
  • IPv4/IPv6/MAC/ARP ACL
    YES
IPv6
  • IPv4/IPv6 Dual Protocol Stack
    YES
  • IPv6 Address Type
    Unicast;Multicast
  • ICMPv6
    YES
  • IPv6 Neighbor Discovery
    YES
  • IPv6 Neighbor Discovery Snooping
    YES
  • Manual Configuration
    YES
  • IPv6 DHCP client
    YES
  • IPv6 DHCP Snooping
    YES
  • MVR over IPv6
    YES
  • SNMP over IPv6
    YES
  • HTTP over IPv6
    YES
  • SSH over IPv6
    YES
  • IPv6 DHCP client
    YES
  • Telnet over IPv6
    YES
管理功能
  • Switch Management
    Web management;CLI via console port or Telnet;SNMP v1, v2c, v3
  • IP clustering
    32 members
  • Firmware & Configuration
    Firmware upgrade via HTTP;Dual images;Multiple configuration files;Configuration file upload/download via TFTP/HTTP/FTP server;Firmware auto upgrade
  • RMON
    groups 1, 2, 3 and 9
  • MIB II
    YES
  • DHCP/BOOTP
    Client;Relay;DHCP dynamic provision option 66,67
  • DNS client
    YES
  • Syslog
    YES
  • System monitor
    YES
  • LLDP
    YES
  • Ping/ Traceroute
    YES
  • SNTP/NTP
    YES
  • SMTP
    YES
  • sFLOW
    YES
